Qualify a request and book the agreed next step

A prospective customer has requested a consultation. Before arranging it, your team needs to understand their use case and whether they need a specialist. The agent asks those questions, offers times from your calendar and confirms the details before booking.

Build the conversation in Studio and connect your calendar and CRM. The example records are fictional; your team supplies the endpoints and contact eligibility rules.

Design the conversation around decisions

For the business access check below, your endpoint decides whether the caller may see the record. If you need verification through a private telephone keypad, use the private verification workflow instead of collecting sensitive answers in the conversation.

A qualification flow spanning interest, need discovery, extraction, routing, booking and CRM follow-up

Keep discovery and specialist routing in the main graph. Use a booking component for availability, confirmation and reservation. Return a confirmed appointment or an exception to the main flow, then update the CRM with the agreed next step.

StageInformation you needDecision
IntroductionWhy the person requested contact; whether now is appropriateContinue or end respectfully
Need discoveryUse case, existing system, scale and timelineGather the missing facts rather than guessing
QualificationStructured fields with defined types and choicesStandard booking, specialist follow-up or further information
AvailabilitySlots returned by the calendar serviceOffer only currently returned options
ConfirmationSelected time, time zone, attendees and requested serviceRequest the reservation only after explicit agreement
Business responseReservation identifier and final stateConfirm completion or record an exception
CRM handoffAgreed next step and the original run identityStore an accurate outcome for the human team

Define qualification fields

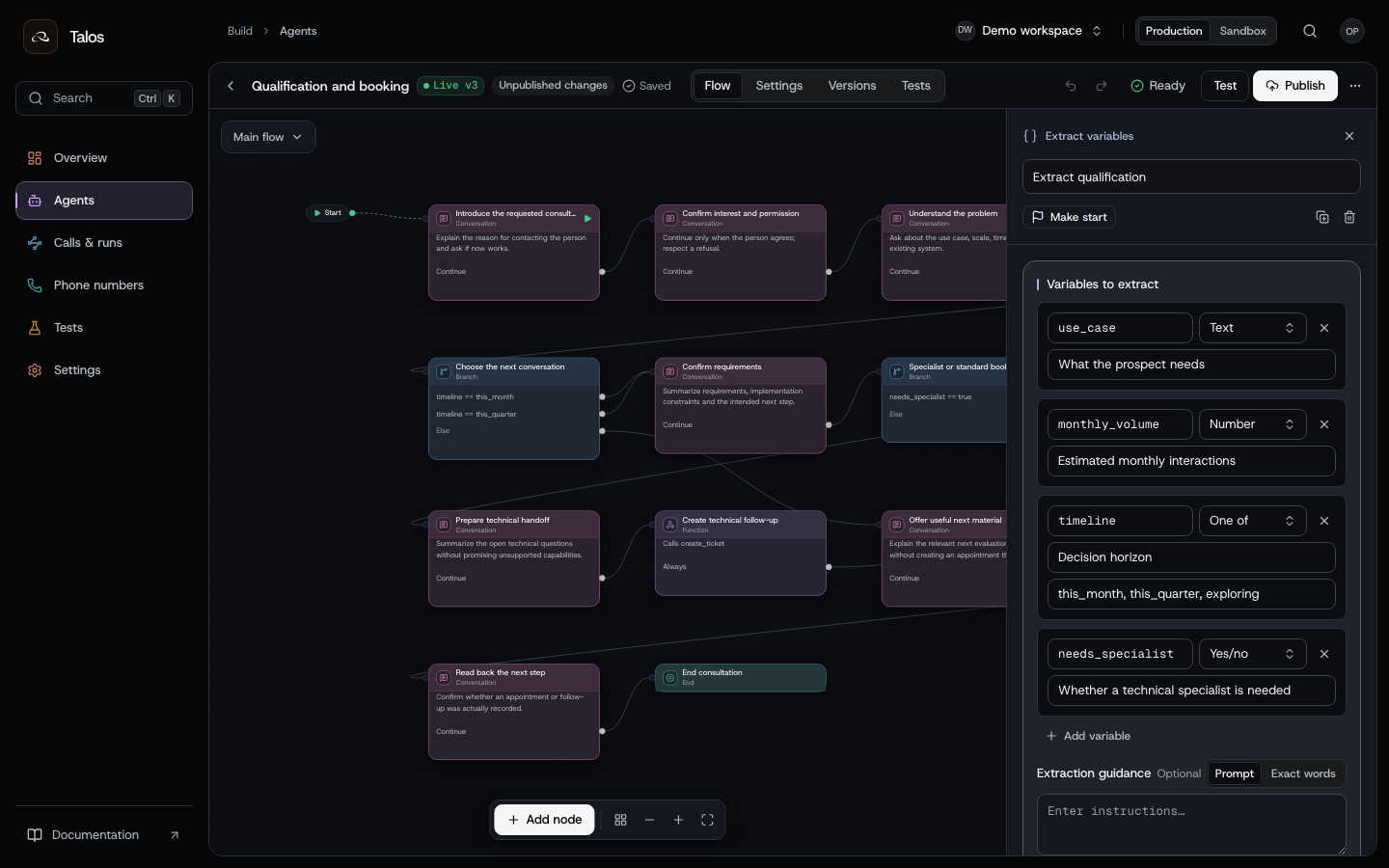

An extraction node for use case, monthly volume, decision timeline and specialist need

Define fields an operator can use: use_case as text, monthly_volume as a number, timeline as an enum, and needs_specialist as a boolean. Describe how to collect each field and handle an unknown answer.

Keep unknown fields unknown. Validate extracted values in your business service before using them to authorize a booking or other transaction.

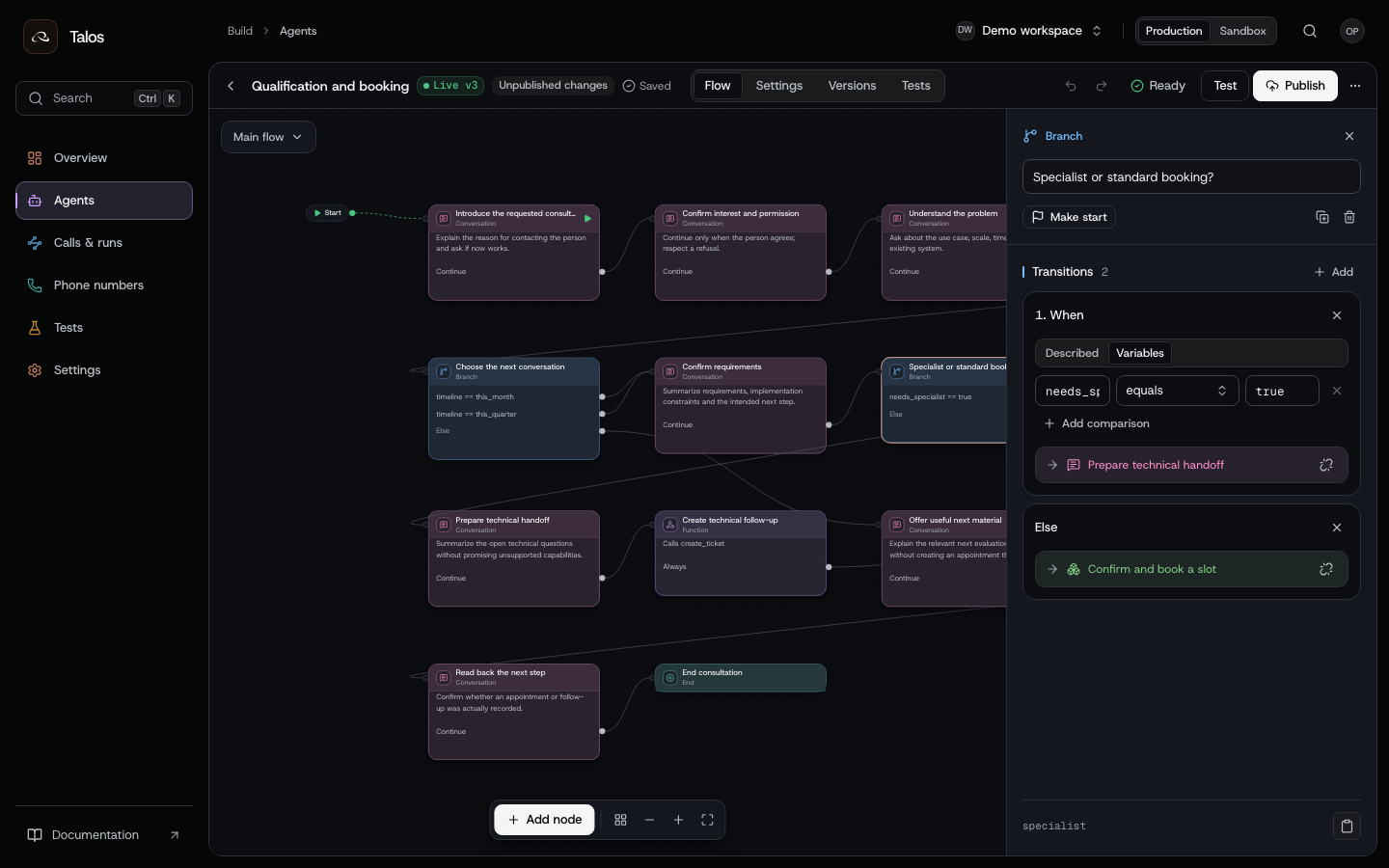

A branch selecting specialist follow-up or the normal booking path

Use defined variables in the routing conditions and keep a default path. Route requests outside the standard offering to a specialist case.

Separate calendar reads from reservation writes

Availability, booking, follow-up-ticket and CRM actions bound to the agent

find_availability reads your calendar. book_appointment requests a reservation. create_ticket records a specialist or exception case. update_crm records the agreed outcome. Give reads and writes separate contracts and test mocks.

For example, the availability endpoint can return a stable slot_id, displayed local time and time zone. The reservation endpoint can accept that slot ID and a known contact ID, then return { "state": "confirmed", "appointment_id": "APPT-DEMO-24" }. Define those fields in your calendar service and map them into flow variables.

The reservation service must validate the slot again at commit time: another person can take it after the agent reads availability. It must also honor the idempotency contract so a retry does not create a second appointment.

Confirm before booking

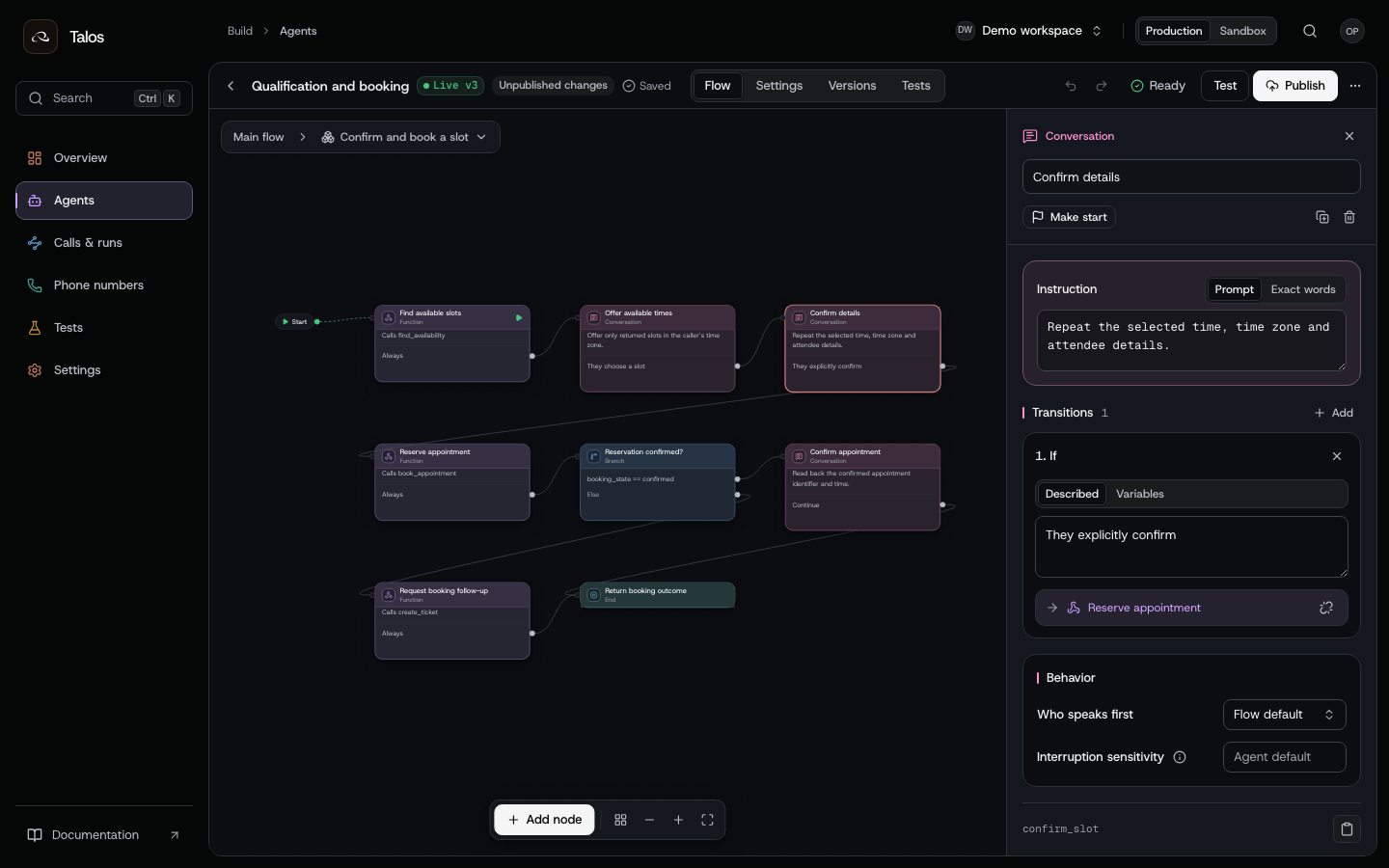

The booking component's confirmation node with the transition for explicit agreement

Read back the selected time and time zone. Check the requested service and attendee details. Only the explicit confirmation transition should reach the reservation function.

Test “I need a different time,” “I am not ready to book,” a correction to the attendee and an ambiguous response. Check that each answer takes the intended transition in a simulation.

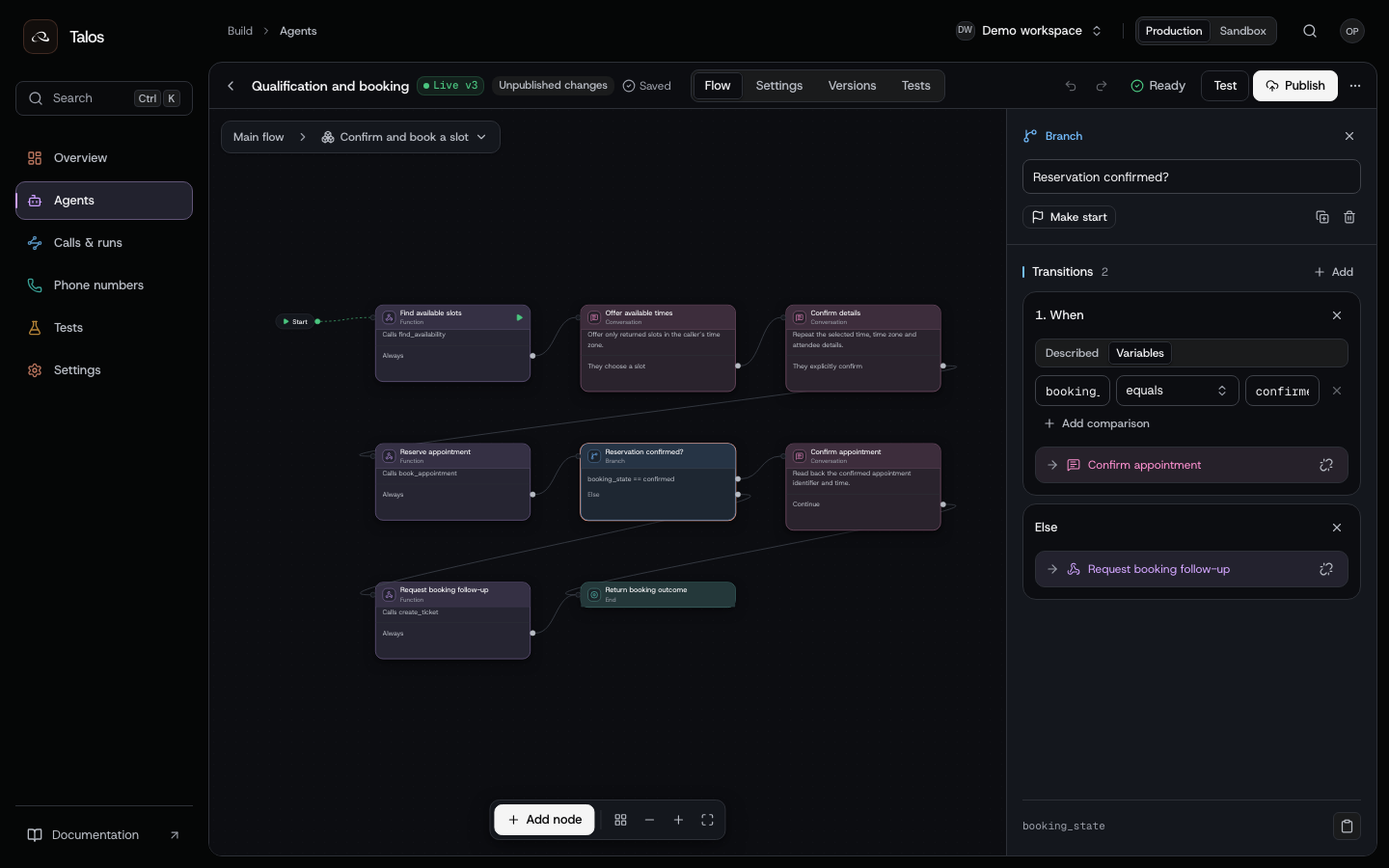

The booking-result branch distinguishing confirmation from a review path

Map the business response into the variable the branch reads. Confirm only a successful reservation response. Route an unavailable slot to review. Reconcile a timeout or unknown result with the calendar before attempting another reservation.

Configure the phone experience

Voicemail detection and the configured message for the consultation example

Set a voicemail message that explains the consultation follow-up and gives a callback route. Leave out account details and appointment confirmation.

Call behavior settings for interruption, reminders, silence and maximum duration

Set interruption behavior, silence handling and maximum duration for the use case. Use an authorized carrier call to check turn-taking, voicemail detection and number routing alongside text simulations.

Supply the known context at admission

This example starts a run for a requested consultation. Pass the contact ID from your business system.

<!-- operation:runs.create -->
json
{
  "channel": "phone",
  "agent_id": "qualification-booking",
  "to": "+14155550124",
  "from": "+14155550100",
  "dynamic_variables": {
    "business_name": "Acme",
    "contact_id": "LEAD-DEMO-24",
    "service": "technical_consultation",
    "timezone": "America/New_York"
  },
  "metadata": { "lead_reference": "LEAD-DEMO-24", "requested_contact": "true" }
}

Use Start a run with a retained Idempotency-Key. Confirm contact eligibility in your business system; metadata only records the supplied context. For inbound calls, configure the number and published agent as described in Phone.

Test the booking and failure paths

Test caseEvidence to inspect
Person declines to continueThe call ends without a booking write
Required qualification field is unknownThe defined information/follow-up route is taken
Caller changes the selected timeThe confirmed slot matches the final agreement
Slot becomes unavailableNo unsupported “you are booked” statement
Reservation response is uncertainReconciliation or review before another write
Specialist requiredA case or agreed handoff is recorded with the run reference

Use node/path assertions for structure, tool assertions for the expected action and a judged criterion for the confirmation conversation. Validate real availability, reservation and CRM contracts separately. Inspect run-linked action receipts before treating a meeting as scheduled.

Store the appointment or follow-up identifier with the run ID in your CRM. If the reservation result is unclear, use those identifiers to reconcile it with the calendar service.

For an outbound example with contact and language changes, site-access checks and primary/backup dispatch transfers, follow Equipment-service coordination.
